X6436 3 Axis Universal Milling Machine Swivel Head Multi Angle Machining Metal

Brand Name : Zaozhuang NO.1

Model Number : X6436

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 7800USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size(mm) : 1500x360

Table travel(mm) : 1000/320/450

T-slot numbers / width /space(mm) : 3-18-80

Spindle taper : ISO40(V) ISO50(H)

Spindle speed range(rpm) : 48-1660rpm(V) 40-1300(H)

Distance between spindle nose and table surface(mm) : 150-550

Spindle motor power(kw) : 4(H)/4(H)

Contact Now

X6436 Swivel Head Multi-Angle Machining Metal 3-Axis Universal Milling Machine

The X6436 milling machine is a high-performance universal milling machine with a high-quality cast iron body, featuring a stable and rigid structure. It is suitable for precision machining of a variety of complex parts, including planes, bevels, grooves, and gears. Its large table travel accommodates workpieces of varying sizes, making it ideal for small and medium-volume production in the machinery manufacturing, mold processing, and maintenance industries.

Product features:

1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

Standard Configuration:

Integrated Control Panel

X／Y automatic feed

Electric lift of Zaxis

Standing and lying

Three-axis digital display

Optional Configuration:

electronic oil pump

dividing head

rotary table

tool

clamping kit

Product specification:

Specifications
Units
X6432
X6436
Table size
mm
1500x320
1500x360
Table travel
mm
1000/320/400
1000/320/450
T-slot numbers / width /space
mm
3-16-60
3-18-80
Spindle taper
ISO40(V)
ISO40(H)
ISO40(V)
ISO50(H)
Spindle speed range
rpm
48-1660rpm(V)
40-1300(H)
48-1660rpm(V)
40-1300(H))
Distance between spindle nose and table surface
mm
120-520
150-550
Distance between spindleaxis and table surface
mm
0-400
0-400
Range of table feed
mm /min
XY:22-555
Z:electric
XY:22-555
Z:electric
Milling head swivel range
°
360
360
Spindle motor power
kw
3(V)/3(H)
4(H)/4(H)
Feed motor power
kw
1.1
1.1
Weight
kg
2100
2580
Overall dimension
mm
2050x1750x2000
2550x2050x2050

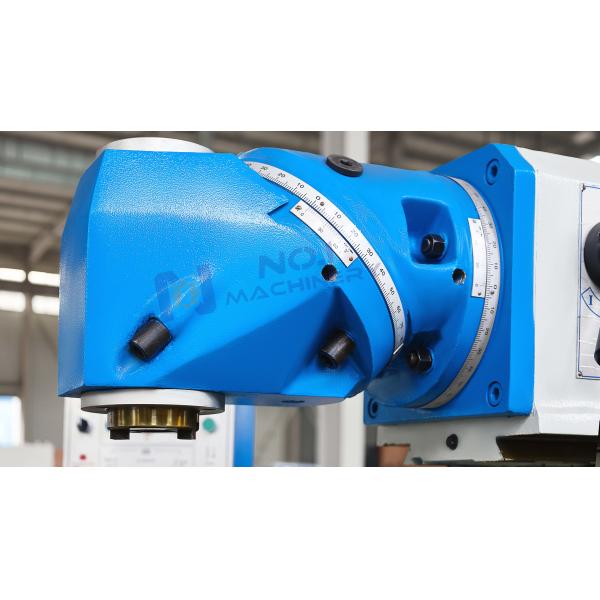

Details Display:

X6436 3 Axis Universal Milling Machine Swivel Head Multi Angle Machining Metal

X6436 3 Axis Universal Milling Machine Swivel Head Multi Angle Machining Metal

X6436 3 Axis Universal Milling Machine Swivel Head Multi Angle Machining Metal

X6436 3 Axis Universal Milling Machine Swivel Head Multi Angle Machining Metal
